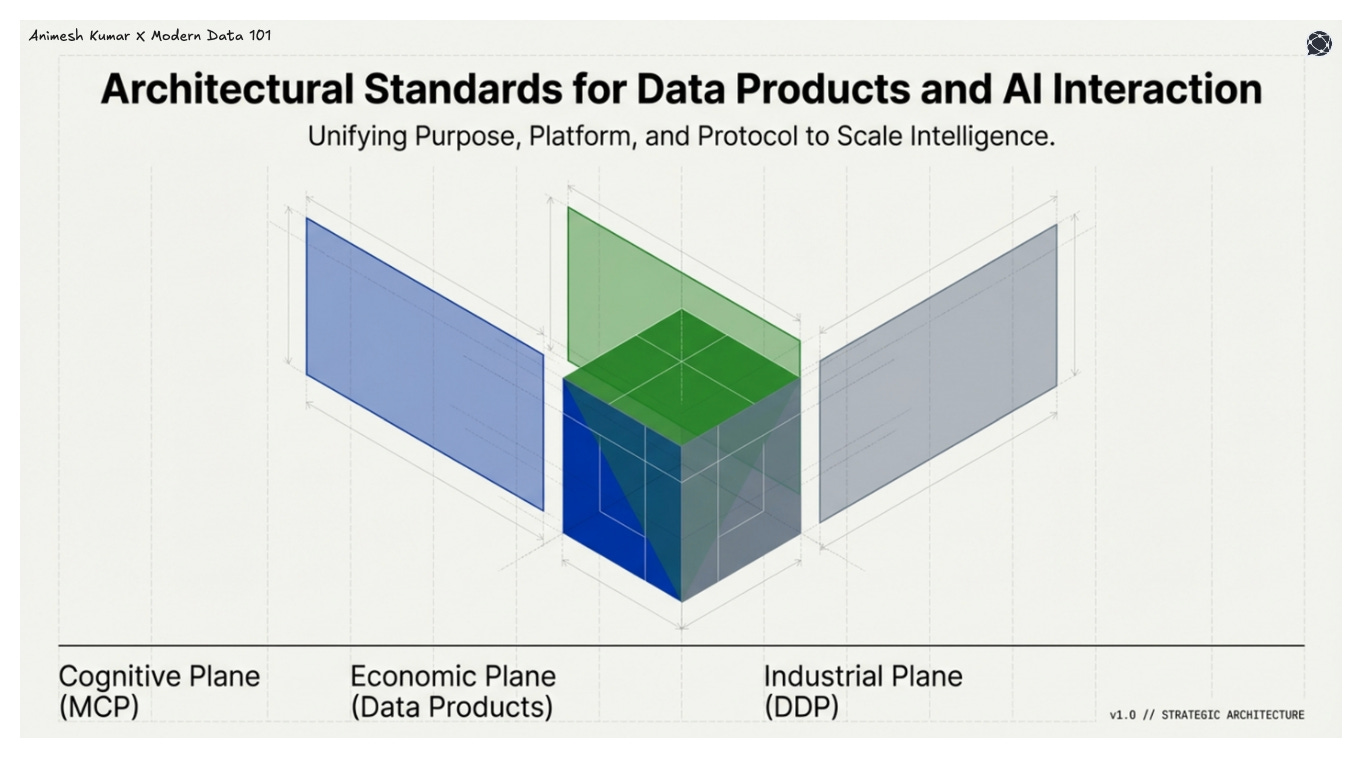

Architectural Standards for Data Products and Al Interaction Unifying Purpose, Platform, and Protocol to Scale Intelligence. | Modern Data 101
Adapted from concepts shared by author(s) | Curated by Modern Data 101

Adapted from concepts shared by Author(s) | Curated by Modern Data 101

Why Unified Standards Emerged

Before we speak of protocols, platforms, or products, we must reduce the system to its irreducible parts. Strip away branding, tooling, and terminology, and what remains is intelligence attempting to act in an environment.

Intelligence, by definition, operates on context. Remove structured context, and the model substitutes probability for truth. But context alone is insufficient. Intelligence must also have a defined surface through which it can act.

And even action requires constraint. Without that, intelligence becomes either paralysed or dangerous.

So any system that enables AI must solve three things:

  • structured context,
  • controlled action, and
  • bounded execution.

Systems Scale Only Through Abstraction


Systems do not scale by adding connections but by removing complexity. And complexity is removed only through abstraction.


When integrations multiply without a unifying layer, the architecture begins to decay. Point-to-point connections proliferate until the system resembles a fragile web of dependencies rather than a coherent structure.

As this happens, context fragments. Each integration carries its own assumptions, schema, and semantics. What was once a shared understanding becomes a localised interpretation. Security follows the same pattern. Without a standard interface, every connection defines its own authentication model, permission logic, and failure modes.

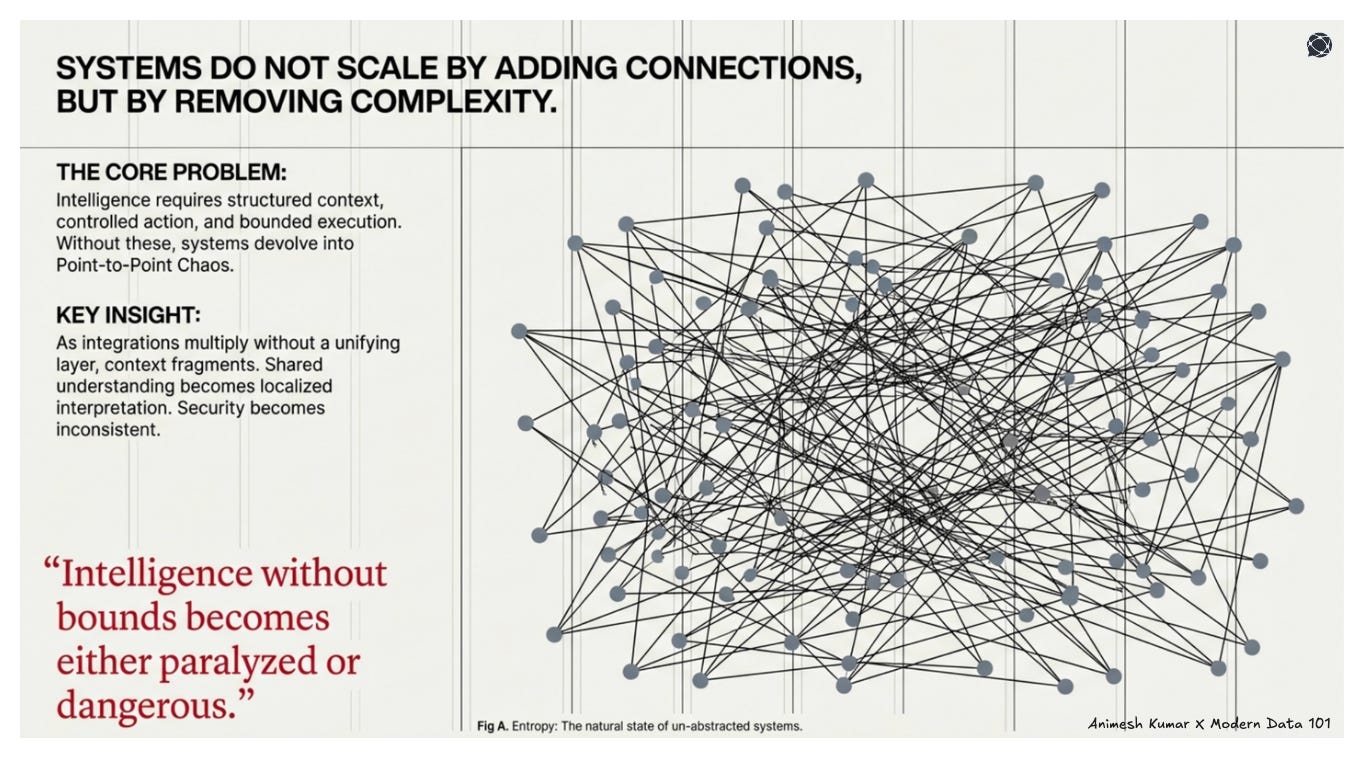

SYSTEMS DO NOT SCALE BY ADDING CONNECTIONS, BUT BY REMOVING COMPLEXITY. THE CORE PROBLEM: Intelligence requires structured context, controlled action, and bounded execution. Without these, systems devolve into Point-to-Point Chaos. KEY INSIGHT: As integrations multiply without a unifying layer, context fragments. Shared understanding becomes localized interpretation. Security becomes inconsistent. | Modern Data 101
The Core Problem that Drives Standardised Architectures Towards Unification | Adapted from concepts shared by Author(s) | Curated by Modern Data 101

Historically, the escape from this entropy has always been the same: standardised interfaces that abstract variability.

  • HTTP abstracted the variability of machines into a universal language of web communication.
  • SQL abstracted storage engines into a shared grammar for querying data.
  • Kubernetes abstracted infrastructure into declarative orchestration.

MCP (Model Context Protocol) performs the same move for intelligence. It standardises the interaction surface between AI and the systems it must reason about and act upon. It is not another integration, but the abstraction that makes integrations composable.

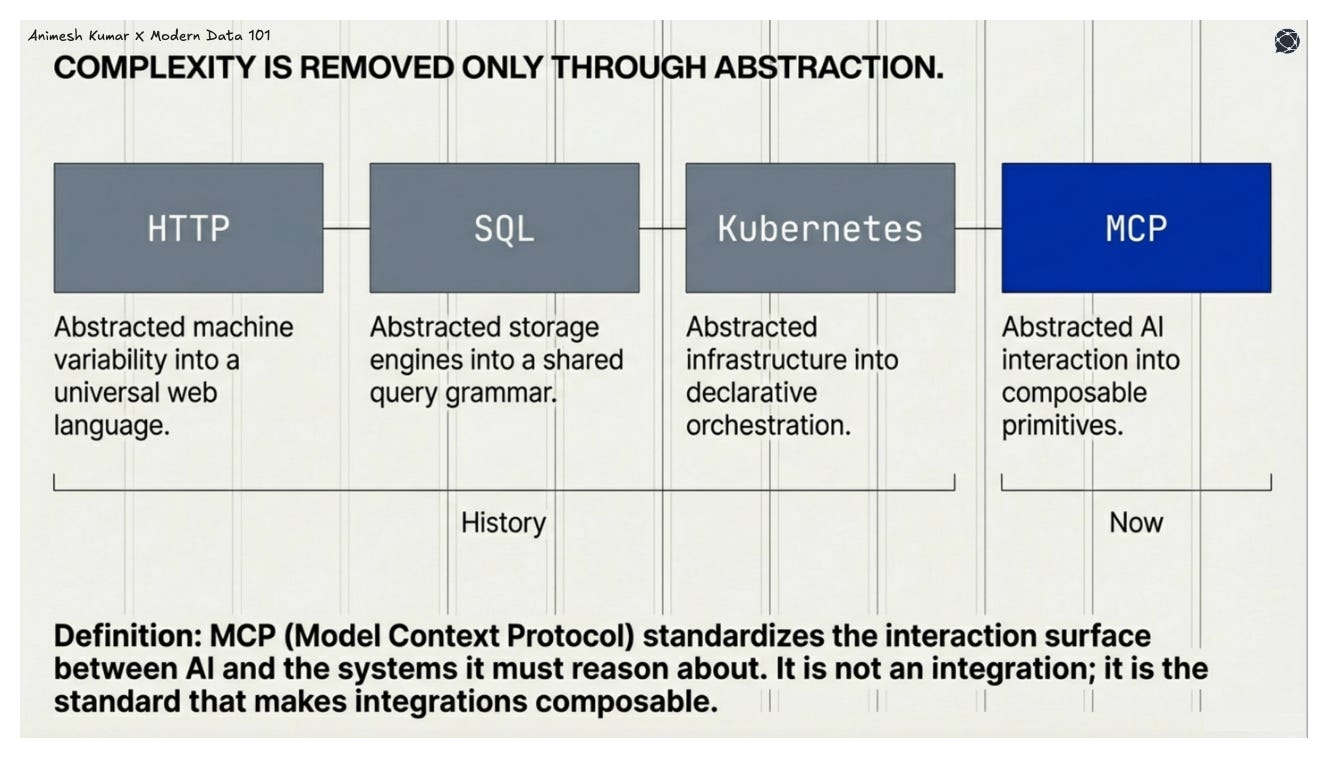

MCP (Model Context Protocol) standardizes the interaction surface between Al and the systems it must reason about. It is not an integration; it is the standard that makes integrations composable. | Modern Data 101
How MCP follows the same architectural pattern of abstraction | Adapted from concepts shared by Author(s) | Curated by Modern Data 101

MCP as a Unified Standard

AI interaction can only do three things: read, act, or be guided. Everything else is a composition of these. MCP formalises this into three orthogonal primitives.

These primitives are independent by design. Each has a clear owner, a clear boundary, and a clear responsibility. Together, they form a minimal but complete interaction model.

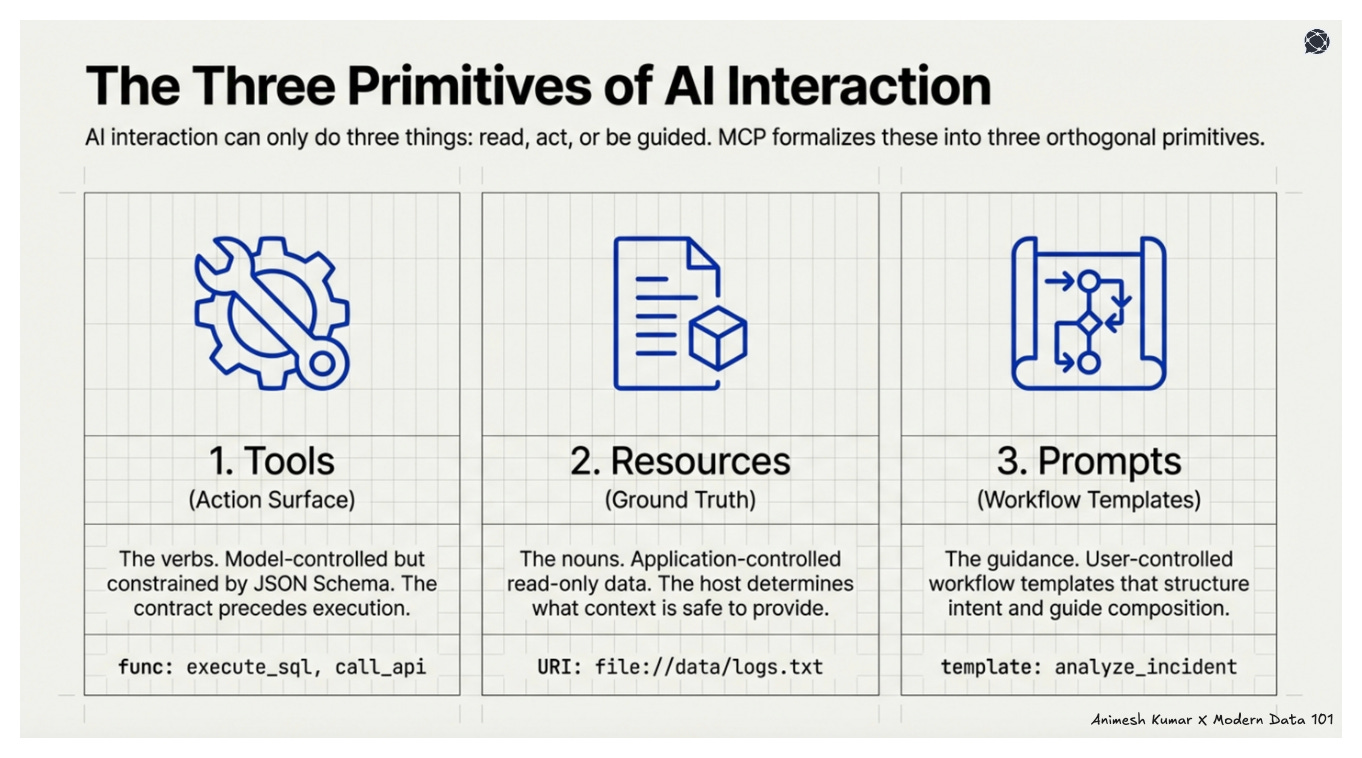

he Three Primitives of Al Interaction Al interaction can only do three things: read, act, or be guided. MCP formalizes these into three orthogonal primitives. | Modern Data 101
Three primitives of AI interaction | Adapted from concepts shared by Author(s) | Curated by Modern Data 101

1. Tools (Action Surface)

Tools are the verbs used by the system. They are executable capabilities that allow intelligence to affect the external world. Like write to a database, call an API, modify a file, trigger a workflow.

They are model-controlled, meaning the model decides when to invoke them. But they are not free-form. They are constrained by typed inputs defined through JSON Schema.


The contract precedes the execution.


Every invocation is auditable. Action is no longer implicit in code hidden behind prompts as it becomes explicit, structured, and reviewable.

2. Resources (Ground Truth)

Resources are the nouns used by the system. They represent passive read-only contextual data: the ground truth against which reasoning occurs. Examples include file contents, database schemas, or API documentation.

They are application-controlled. The host determines what context is relevant and safe to provide, anchoring the model’s reasoning in bounded reality.

3. Prompts (Workflow Templates)

Prompts are like structured intent. They are reusable workflow templates that guide how tools and resources should be composed.

They are user-controlled. Invocation is explicit, not inferred, preserving agency in complex operations. They help structure interactions and provide a consistent way to initiate complex tasks by telling the model how to work with specific tools and resources.


Unified Architecture Pattern Inside MCP

MCP unifies AI interaction across two independent dimensions: semantics and transport. This separation is what allows the protocol to scale without collapsing into coupling.

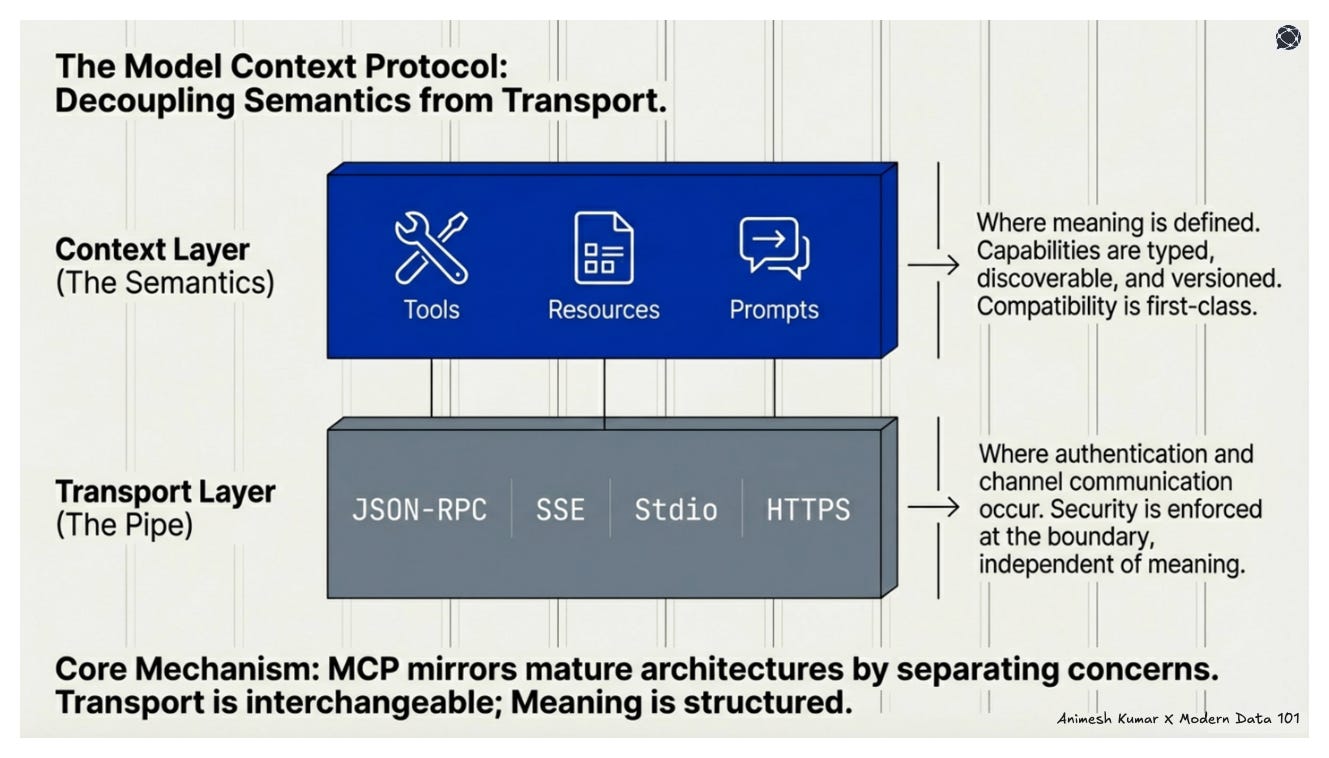

The Model Context Protocol: Decoupling Semantics from Transport. Context Layer (The Semantics) Tools Resources Prompts Where meaning is defined. Capabilities are typed, discoverable, and versioned. Compatibility is first-class. Transport Layer (The Pipe) JSON-RPC SSE Stdio HTTPS Where authentication and channel communication occur. Security is enforced at the boundary, independent of meaning. Core Mechanism: MCP mirrors mature architectures by separating concerns. Transport is interchangeable; Meaning is structured. | Modern Data 101
Decoupling approach of MCPs | Adapted from concepts shared by Author(s) | Curated by Modern Data 101

A. Context Layer (Data Layer)

At the data context layer, MCP defines meaning. It uses a structured message format, ensuring that communication is not ad hoc but typed and predictable.

The MCP primitives (tools, resources, prompts) exist here as structured capabilities. They are discoverable through explicit methods like tools/list and resources/list, which means capability is declared.

Version negotiation also belongs to this layer. Before execution, both sides agree on what they understand. Compatibility becomes a first-class concern rather than an afterthought.

B. Transport Layer

Beneath context and semantics is transport. MCP supports multiple communication channels. Authentication mechanisms operate here. Security is enforced at the communication boundary, independent of semantic meaning. Transport is interchangeable, while meaning is not.

…

By decoupling these, MCP mirrors every mature architecture. Abstraction at the right boundary is what makes a system extensible. MCP applies that approach to intelligence itself.


Data Products: The Unified Standard (For Purpose)

A Data Product is unified around purpose.

What Makes a Data Product a Unified Standard

A standard exists when variability is constrained by contract. A Data Product becomes a unified standard when it defines what must remain stable and independent, even as everything around it changes state.

It standardises:

  • Ownership: There is a clearly defined steward. Responsibility is not diffused across teams or hidden inside pipelines.
  • Accountability: Quality, availability, and fitness-for-purpose are measurable and enforced.
  • Interface: Access is intentional and documented. Consumers interact through a defined surface instead of using implicit tribal knowledge.
  • Consumer obligation: The producer acknowledges the needs of a specific audience. Reuse is designed.
  • Lifecycle: Creation, evolution, deprecation → each phase is governed. The product has a temporal boundary.

A Data Product is not a pipeline but a bounded, purpose-aligned, reusable economic unit of data.

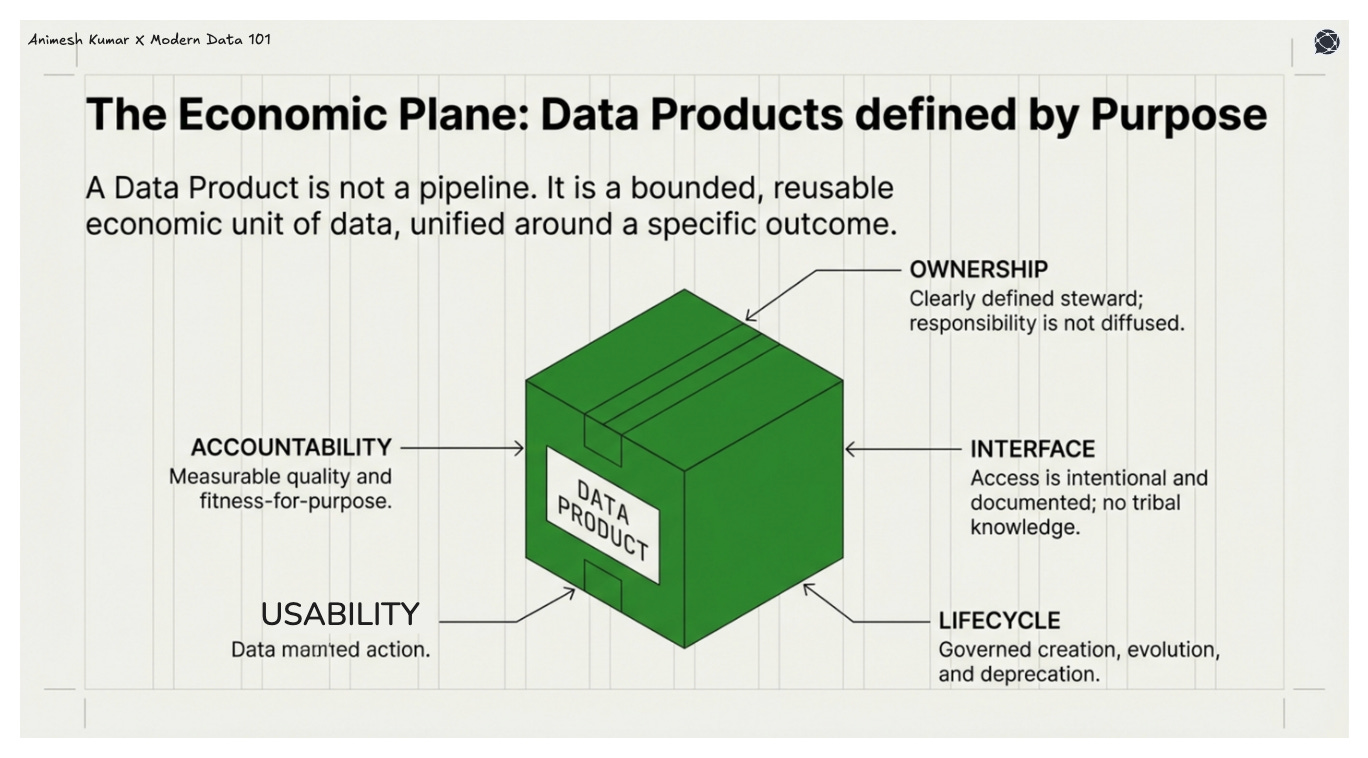

The Economic Plane: Data Products defined by Purpose A Data Product is not a pipeline. It is a bounded, reusable economic unit of data, unified around a specific outcome. | Modern Data 101
Data Products are Unified by Purpose | Adapted from concepts shared by Author(s) | Curated by Modern Data 101

Architectural Resonance: Data Product ↔ MCP

When two systems are built from sound first principles of data, they will mirror each other. Data Products and MCP are visibly resonating for us because they solve adjacent problems with the same architectural language.

  • A Data Product defines an interface for consumers. In MCP, that interface becomes a tool schema (a typed contract that intelligence can safely invoke).
  • A Data Product provides context shaped for a specific purpose. In MCP, that context is formalised as resources.
  • A Data Product encodes workflows that guide how it should be used. In MCP, prompts structure execution, turning intent into a repeatable interaction pattern.
  • Ownership in a Data Product establishes bounded responsibility. In MCP, the server boundary enforces controlled scope, defining where authority begins and ends.
  • Observability ensures that a Data Product can be trusted. In MCP, activity logs and auditable tool calls make every action inspectable.

MCP operationalises Data Products for AI. It translates purpose-bound economic units into machine-consumable contracts.


Where Data Products unify around business purpose, MCP unifies around AI interaction. One defines why value exists. The other defines how intelligence engages with it.


Role of MCP in Data Product Development

If Data Products are built for purpose, they must eventually be built for intelligence. The moment AI becomes a consumer, the interaction surface must be formalised, and MCP provides that formalisation.

MCP enables:

  1. AI-native Data Product interfaces: Instead of wrapping products in ad hoc prompts or brittle middleware, it exposes typed, discoverable contracts that intelligence can reliably invoke.
  2. Declarative action surfaces: Tools are no longer hidden behind code or implicit workflows. They are explicit capabilities with defined schemas and auditable execution.
  3. Safe execution boundaries: Action is constrained by permissions, approvals, and scoped servers, ensuring that intelligence operates within governed limits.
  4. Dynamic context retrieval: Through structured resources and templates, products expose live, parameterised ground truth rather than static extracts.
  5. Multi-server orchestration: A single host can compose multiple Data Products into a unified capability surface, without collapsing ownership boundaries.

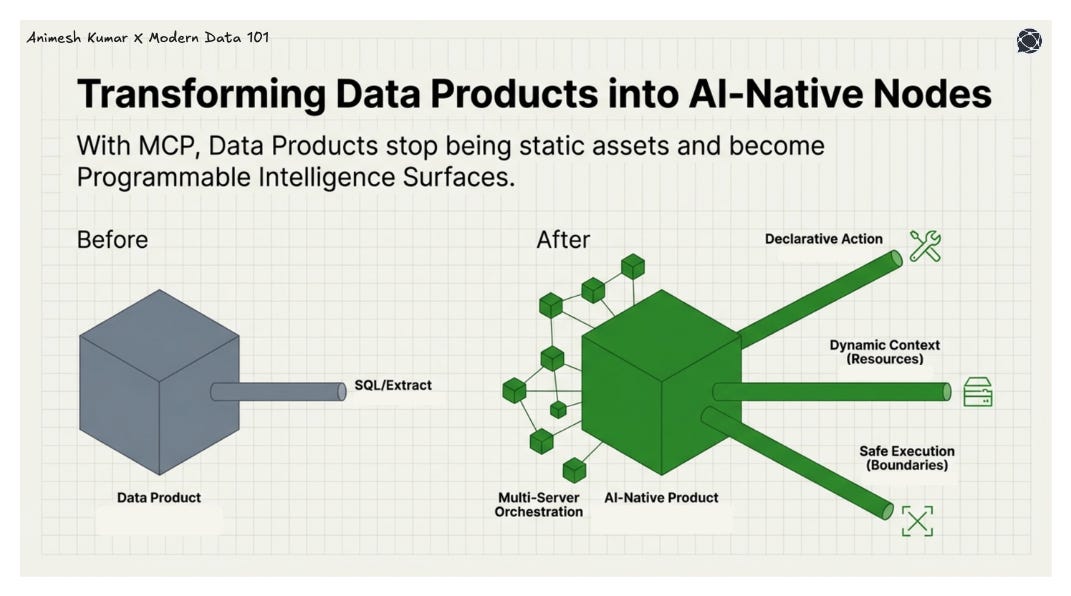

Transforming Data Products into Al-Native Nodes With MCP, Data Products stop being static assets and become Programmable Intelligence Surfaces. | Modern Data 101
Adapted from concepts shared by Author(s) | Curated by Modern Data 101

With MCP, Data Products become plug-and-play intelligence nodes. The contract is stable, the boundaries are clear, and intelligence can scale without architectural entropy.


Unified Standard for Builders: DDP

If Data Products unify around purpose, something must unify how they are built. Scale cannot depend on artisanal engineering.

A Data Developer Platform (DDP) standardises the conditions under which Data Products are created, governed, and evolved. It reduces variance at the builder layer so that the purpose can be delivered reliably.

A DDP standardises:

  • Modelling: Data structures are designed through shared conventions.
  • Governance: Policies are embedded into workflows rather than enforced retroactively.
  • Observability: Health, quality, and performance are measurable by default.
  • Access control: Permissions are embedded and reproducible.
  • CI/CD: Change is versioned, tested, and promoted.
  • Environment management: Development, staging, and production operate under consistent rules.
  • Metadata: Context about data is first-class, not an afterthought.
  • Product lifecycle: Creation, iteration, and deprecation follow defined processes.

Where Data Products unify purpose, DDP unifies creation and governance. One defines why a product exists. The other ensures it can be built, scaled, and trusted.


DDP’s Core Layers

A Data Developer Platform resolves into distinct layers:

  • Compute Layer: Where transformations execute, and logic materialises into state.
  • Storage Layer: Where data persists, versioned and retrievable.
  • Metadata Layer: Where meaning about data (lineage, ownership, definitions) is formalised.
  • Orchestration Layer: Where dependencies, timing, and execution order are coordinated.
  • Governance Layer: Where policy, quality, and compliance are enforced.
  • Interface Layer: Where products expose their contracts to consumers.
  • Experience Layer: Where builders and stakeholders interact with the system.

Each layer isolates a fundamental concern. Together, they transform scattered tooling into coherent infrastructure. DDP ensures that builders can reliably produce standardised Data Products.

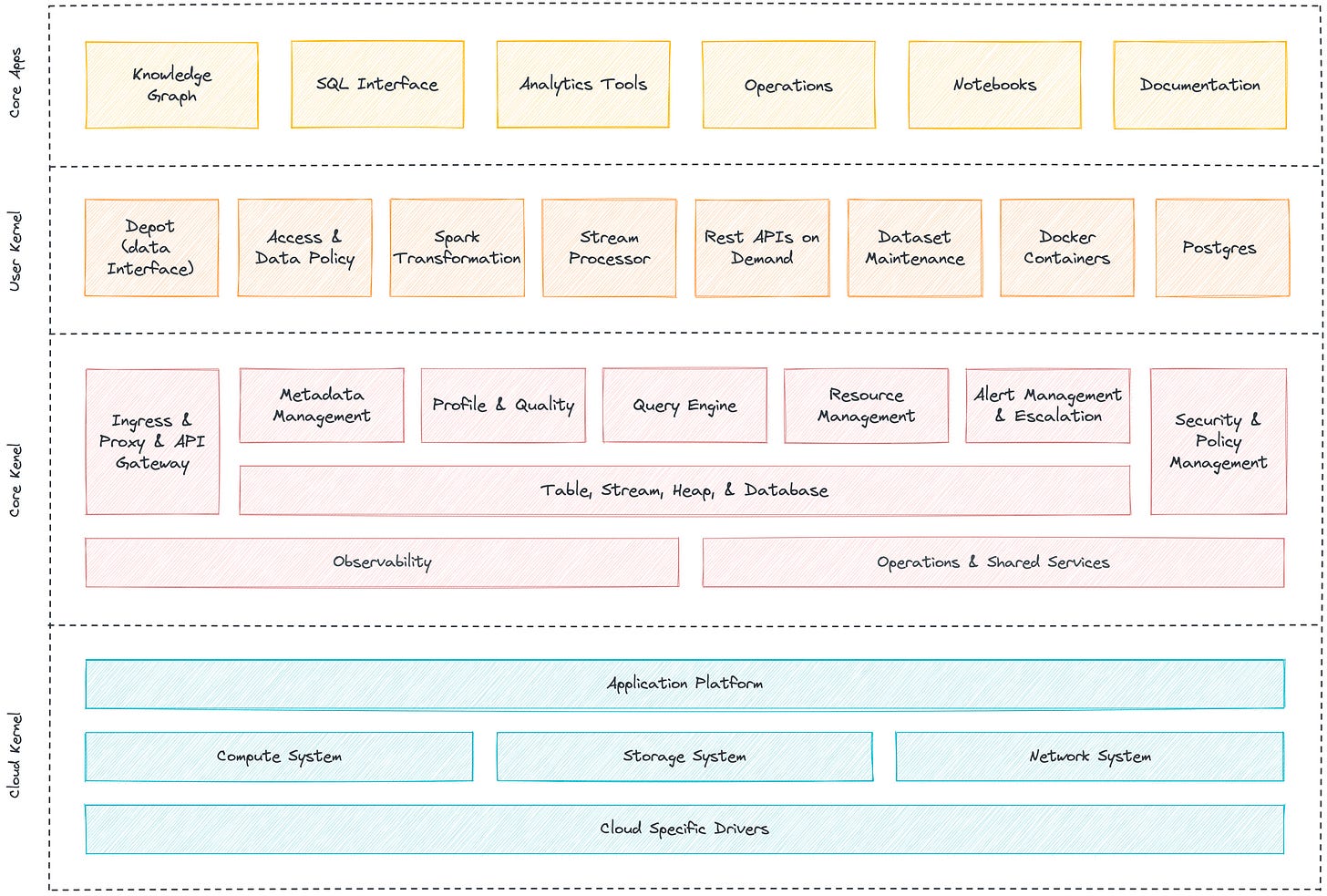

Data Developer Platform Architecture
Capabilities and Layers of Data Developer Platforms | Source

MCP ↔ DDP: Architectural Interlock

MCP connects intelligence to Data Developer Platforms. If DDP industrialises data production, MCP industrialises AI interaction with that production. The two systems interlock at their boundaries.

MCPs standardise how intelligence reads from, reasons about, and acts upon the data developer platform capabilities.

DDP governs the infrastructure. MCP governs AI interaction with it. Together, they close the loop between governed data production and intelligence-driven operations at scale.

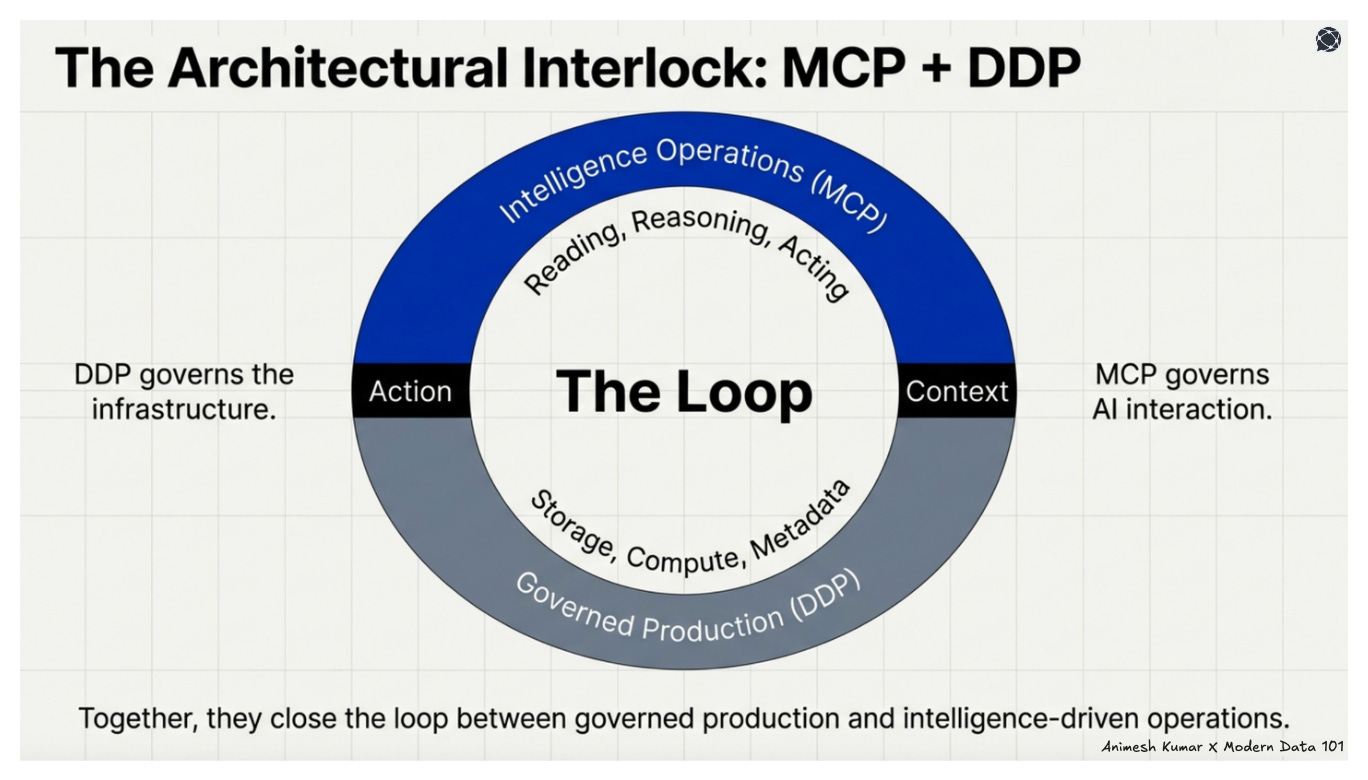

The Architectural Interlock: MCP + DDP Intelligence Operations (MCP) Reading,Reasoning, Acting DDP governs the infrastructure. Action The Looр Context MCP governs Al interaction. Storage, Compute, Metadata Governed Production (DDР) Together, they close the loop between governed production and intelligence-driven operations. | Modern Data 101
Adapted from concepts shared by Author(s) | Curated by Modern Data 101

Three Unified Standards, Three Planes

The architecture resolves into three distinct planes. Each plane solves a different problem, yet all follow the same structural logic.

Purpose (Data Product)

The first plane is economic. Data Products are unified around outcome. They exist to serve a defined consumer, with measurable utility and bounded responsibility.

Platform (DDP)

The second plane is industrial. The Data Developer Platform is unified around builder productivity and governance. It standardises how products are created, evolved, and controlled at scale.

Intelligence Interface (MCP)

The third plane is cognitive. MCP is unified around AI-system interoperability. It standardises how intelligence reads context, invokes capability, and operates within boundaries.

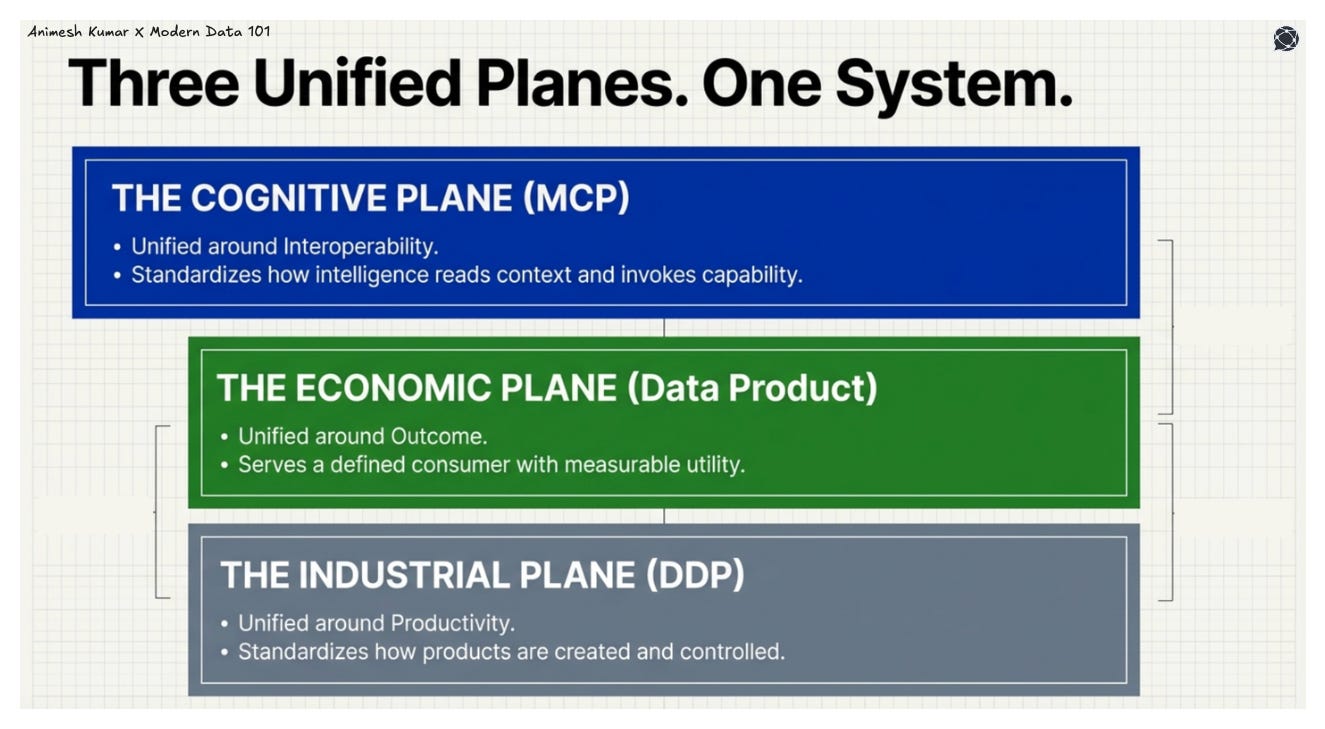

Three Unified Planes. One System. THE COGNITIVE PLANE (MCP) Unified around Interoperability. Standardizes how intelligence reads context and invokes capability. Supported By JetBrains Mono THE ECONOMIC PLANE (Data Product) Unified around Outcome. Serves a defined consumer with measurable utility. THE INDUSTRIAL PLANE (DDP) Unified around Productivity. Standardizes how products are created and controlled. | Modern Data 101
The three unified fortifications for composable AI at scale | Adapted from concepts shared by Author(s) | Curated by Modern Data 101

Across all three planes, the same architectural language appears:

  • Interfaces
  • Contracts
  • Ownership
  • Boundaries
  • Discovery
  • Versioning
  • Observability

These are structural requirements of scalable systems which make the convergence click.


Business Purpose → Architectural Language → Direct Value

Architecture is the translation between business intent and operational reality. The resonance of the three systems that manage economic value, infrastructure, and communication with humans and machines enables us to streamline and plan value like never before.

Reduced Integration Cost

A unified AI interface eliminates bespoke connectors. Instead of rebuilding integration logic for every tool and dataset, intelligence interacts through a stable contract. Cost declines because variability is abstracted.

Faster Productisation

When Data Products expose typed interfaces and governed context, they are AI-ready by design. Intelligence does not need to reverse-engineer meaning.

Safer Automation

Automation without boundaries is the most fragile governance model that unfortunately exists in many organisations to date. MCP introduces human-in-the-loop checkpoints, typed tool validation, and scoped execution roots, orchestrated by DDP.

Composable Intelligence

Multiple servers can be orchestrated as a single capability surface. Intelligence no longer operates within isolated silos but across coordinated domains. Composition replaces integration as the scaling mechanism.

Governance Alignment

Permissions operate at the tool level. Every action is logged, auditable, and reviewable. Approvals are structured, not implicit. Governance is embedded in execution.

Platform Leverage

A Data Developer Platform ensures reusable metadata, standardised modelling, and governed data exposure. It stabilises the production layer. MCP ensures standardised AI execution and stabilises the interaction layer.


Final Note

MCP is the standardisation of intelligence interaction. Data Products are economic interfaces tied directly to business value. A Data Developer Platform make the industrialisation layer.

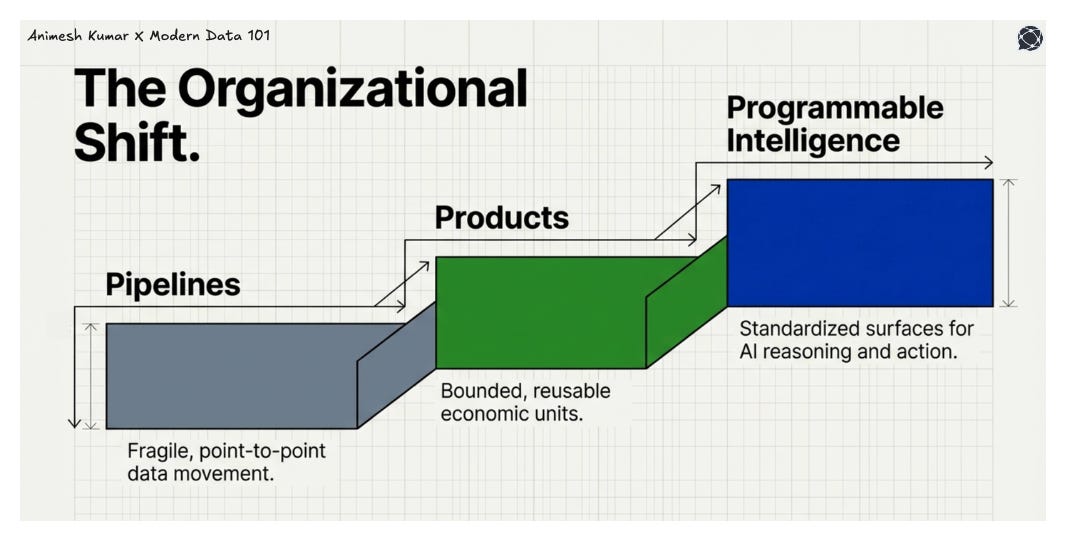

The Organizational Shift. Programmable Intelligence Products Pipelines Fragile, point-to-point data movement. Purpose (Data Product) Standardized surfaces for Al reasoning and action. Bounded, reusable economic units. → Platform (DDP) → Protocol (МCР) → Intelligence | Modern Data 101
Adapted from concepts shared by Author(s) | Curated by Modern Data 101

When aligned, the organisation moves from Pipelines to Products to Programmable intelligence surfaces.

‍
